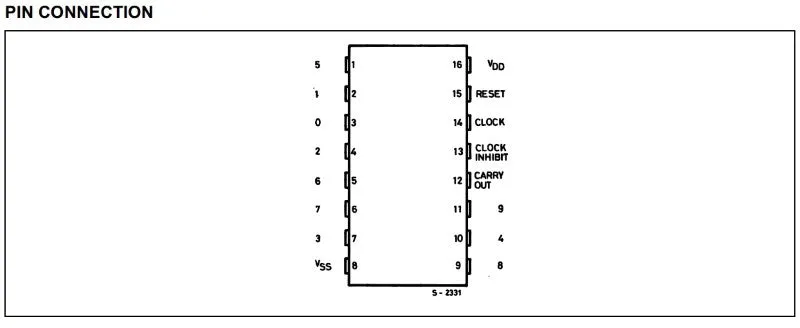

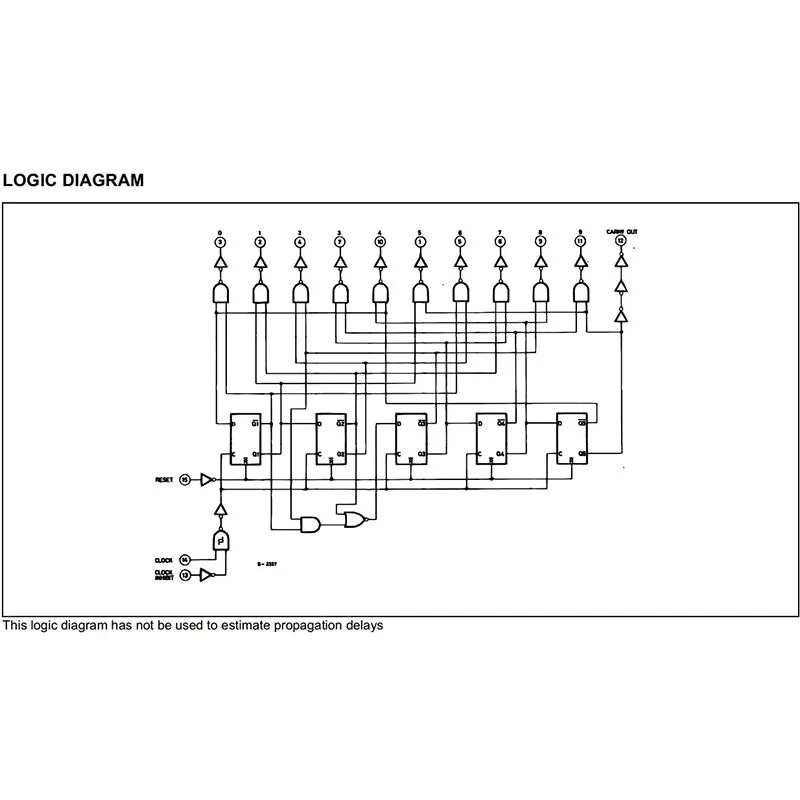

The 4017 decade counter has ten output lines, one to represent each of the numbers 0 to 9, there is also a carry out line which goes high as the counter goes from 9 back round to 0. The counter is reset to zero when the reset line is held in a high state. As long as the clock inhibit is held low, upon a rising edge of the clock pin the output will count up from zero, one number at a time for each rising edge on the clock pin.

Features:

• Operating voltage: 3V – 20V.
• Max quiescent current (at 5V): 5uA.
• Typical output drive (at 5V): 1mA.
• Max clock frequency (at 5V): 5MHz.
• Meets all requirements of JEDEC JESD13B 'Standard Specifications For Description of B Series CMOS Devices'.

Contents:

• 1 x Decade Counter (4017B)
